StudioAnalyzer

A native studio analyzer combining spectrum, waveform, stereo phase, bands, spectrogram and onset views.

audio-plugins · analysis · in-development

Development preview · Windows VST3

StudioAnalyzer brings the lab's visual audio tools into a native plug-in. An overview combines six displays, with focused pages for looking more closely at a signal's frequency content, waveform, stereo relationship and activity over time.

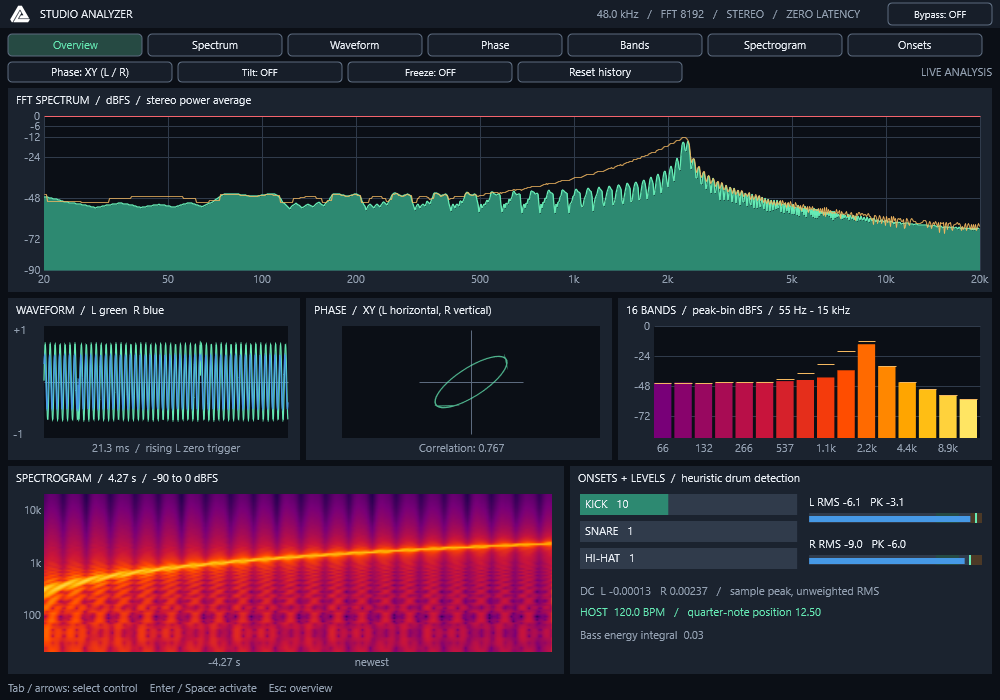

StudioAnalyzer native editor

Native editor screenshot. View full-size screenshot

What it does

  • Inspect an FFT spectrum, decaying peaks and a logarithmic frequency scale.
  • View stereo waveforms, an XY or mid/side phase display and correlation.
  • Follow sixteen frequency bands, a spectrogram and heuristic onset indicators.
  • Check RMS, sample peak, DC and host tempo while mono or stereo audio passes through unchanged.

Using the plugin

Insert the analyzer on a track, bus or master and start playback. Use Overview for a broad picture, then open a focused display when investigating a specific detail. The native processor adds no latency.

Project status

Windows VST3 development project. The separate browser-based Studio Analyzer is available in the site's Tools section.
